执行

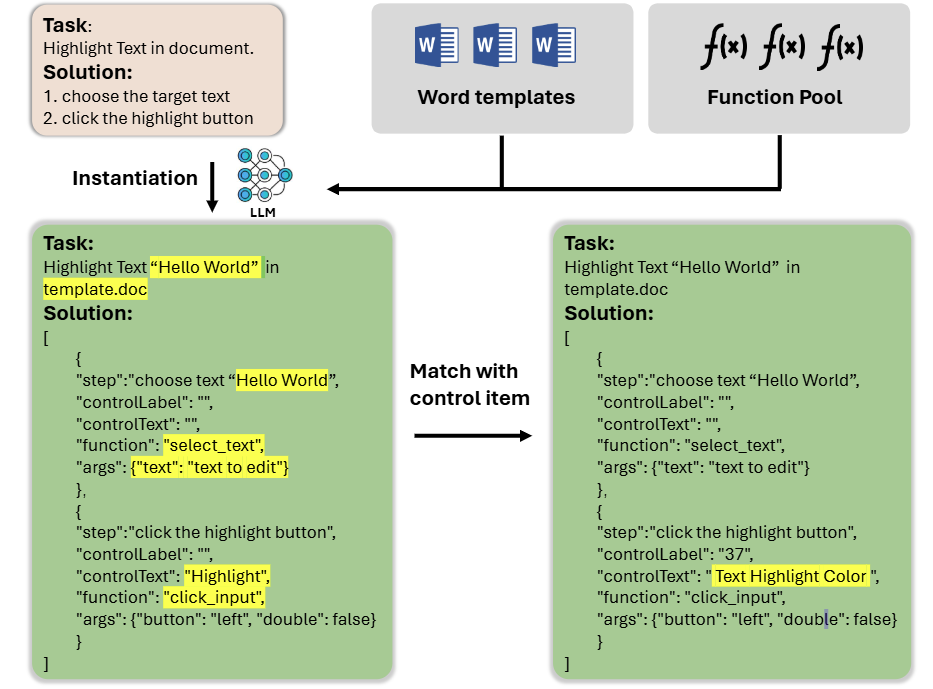

实例化后的计划将由一个 execute 任务执行。在此阶段,给定任务-动作数据,执行过程将根据词语环境匹配真实的控制器,并逐步执行计划。执行完成后,evaluation 代理将评估整个执行过程的质量。

ExecuteFlow

ExecuteFlow 类旨在促进 Windows 应用程序环境中任务的执行和评估。它提供与应用程序 UI 交互、执行预定义任务、捕获屏幕截图以及评估执行结果的功能。该类还处理任务的日志记录和错误管理。

任务执行

ExecuteFlow 类中的任务执行遵循结构化序列,以确保任务性能的准确性和可追溯性。

  1. 初始化:

  2. 加载配置设置和日志路径。

  3. 查找与任务匹配的应用程序窗口。
  4. 检索或创建一个 ExecuteAgent 来执行任务。
  5. 计划执行:

  6. 遍历 instantiated_plan 中的每个步骤。

  7. 解析步骤以提取信息,例如子任务、控制文本和所需操作。
  8. 动作执行:

  9. 在应用程序窗口中查找与指定控制文本匹配的控件。

  10. 如果未找到匹配的控件,则抛出错误。
  11. 使用代理的 Puppeteer 框架执行指定的操作(例如,点击、输入文本)。
  12. 捕获应用程序窗口和选定控件的屏幕截图,用于日志记录和调试。
  13. 结果日志记录:

  14. 记录步骤执行的详细信息,包括控件信息、执行的动作和结果。

  15. 终结:

  16. 保存应用程序窗口的最终状态。

  17. 优雅地退出应用程序客户端。

评估

ExecuteFlow 类中的评估过程旨在根据预定义提示评估已执行任务的性能。

  1. 开始评估:

  2. 评估在任务执行后立即开始。

  3. 它使用在类构建期间初始化的 ExecuteEvalAgent
  4. 执行评估:

  5. ExecuteEvalAgent 使用输入提示(例如,主提示和 API 提示)和任务执行期间生成的日志组合来评估任务。

  6. 评估过程输出结果摘要(例如,质量标志、评论和任务类型)。
  7. 记录并输出结果:

  8. 在控制台中显示评估结果。

  9. 返回评估摘要以及已执行的计划,以便进行进一步分析或报告。

参考

ExecuteFlow

基类:AppAgentProcessor

用于执行任务并保存结果的 ExecuteFlow 类。

初始化任务的执行流。

参数
  • task_file_name (str) –

    正在处理的任务文件的名称。

  • context (Context) –

    当前会话的上下文对象。

  • environment (WindowsAppEnv) –

    正在处理的应用程序的环境对象。

源代码位于 execution/workflow/execute_flow.py
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
def __init__(
    self, task_file_name: str, context: Context, environment: WindowsAppEnv
) -> None:
    """
    Initialize the execute flow for a task.
    :param task_file_name: Name of the task file being processed.
    :param context: Context object for the current session.
    :param environment: Environment object for the application being processed.
    """

    super().__init__(agent=ExecuteAgent, context=context)

    self.execution_time = None
    self.eval_time = None
    self._app_env = environment
    self._task_file_name = task_file_name
    self._app_name = self._app_env.app_name

    log_path = _configs["EXECUTE_LOG_PATH"].format(task=task_file_name)
    self._initialize_logs(log_path)

    self.application_window = self._app_env.find_matching_window(task_file_name)
    self.app_agent = self._get_or_create_execute_agent()
    self.eval_agent = self._get_or_create_evaluation_agent()

    self._matched_control = None  # Matched control for the current step.

execute(request, instantiated_plan)

执行执行流:执行任务并保存结果。

参数
  • request (str) –

    要执行的原始请求。

  • instantiated_plan (List[Dict[str, Any]]) –

    包含要执行的步骤的实例化计划。

返回
  • Tuple[List[Dict[str, Any]], Dict[str, str]]

    包含任务质量标志、评论和任务类型的元组。

源代码位于 execution/workflow/execute_flow.py
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
def execute(
    self, request: str, instantiated_plan: List[Dict[str, Any]]
) -> Tuple[List[Dict[str, Any]], Dict[str, str]]:
    """
    Execute the execute flow: Execute the task and save the result.
    :param request: Original request to be executed.
    :param instantiated_plan: Instantiated plan containing steps to execute.
    :return: Tuple containing task quality flag, comment, and task type.
    """

    start_time = time.time()
    try:
        executed_plan = self.execute_plan(instantiated_plan)
    except Exception as error:
        raise RuntimeError(f"Execution failed. {error}")
    finally:
        self.execution_time = round(time.time() - start_time, 3)

    start_time = time.time()
    try:
        result, _ = self.eval_agent.evaluate(
            request=request, log_path=self.log_path
        )
        utils.print_with_color(f"Result: {result}", "green")
    except Exception as error:
        raise RuntimeError(f"Evaluation failed. {error}")
    finally:
        self.eval_time = round(time.time() - start_time, 3)

    return executed_plan, result

execute_action()

执行动作。

源代码位于 execution/workflow/execute_flow.py
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
def execute_action(self) -> None:
    """
    Execute the action.
    """

    control_selected = None
    # Find the matching window and control.
    self.application_window = self._app_env.find_matching_window(
        self._task_file_name
    )
    if self.control_text == "":
        control_selected = self.application_window
    else:
        self._control_label, control_selected = (
            self._app_env.find_matching_controller(
                self.filtered_annotation_dict, self.control_text
            )
        )
        if control_selected:
            self._matched_control = control_selected.window_text()

    if not control_selected:
        # If the control is not found, raise an error.
        raise RuntimeError(f"Control with text '{self.control_text}' not found.")

    try:
        # Get the selected control item from the annotation dictionary and LLM response.
        # The LLM response is a number index corresponding to the key in the annotation dictionary.
        if control_selected:

            if _ufo_configs.get("SHOW_VISUAL_OUTLINE_ON_SCREEN", True):
                control_selected.draw_outline(colour="red", thickness=3)
                time.sleep(_ufo_configs.get("RECTANGLE_TIME", 0))

            control_coordinates = PhotographerDecorator.coordinate_adjusted(
                self.application_window.rectangle(), control_selected.rectangle()
            )

            self._control_log = {
                "control_class": control_selected.element_info.class_name,
                "control_type": control_selected.element_info.control_type,
                "control_automation_id": control_selected.element_info.automation_id,
                "control_friendly_class_name": control_selected.friendly_class_name(),
                "control_coordinates": {
                    "left": control_coordinates[0],
                    "top": control_coordinates[1],
                    "right": control_coordinates[2],
                    "bottom": control_coordinates[3],
                },
            }

            self.app_agent.Puppeteer.receiver_manager.create_ui_control_receiver(
                control_selected, self.application_window
            )

            # Save the screenshot of the tagged selected control.
            self.capture_control_screenshot(control_selected)

            self._results = self.app_agent.Puppeteer.execute_command(
                self._operation, self._args
            )
            self.control_reannotate = None
            if not utils.is_json_serializable(self._results):
                self._results = ""

                return

    except Exception:
        self.general_error_handler()

execute_plan(instantiated_plan)

从执行代理获取执行结果。

参数
  • instantiated_plan (List[Dict[str, Any]]) –

    包含要执行的步骤的计划。

返回
  • List[Dict[str, Any]]

    已执行步骤列表。

源代码位于 execution/workflow/execute_flow.py
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
def execute_plan(
    self, instantiated_plan: List[Dict[str, Any]]
) -> List[Dict[str, Any]]:
    """
    Get the executed result from the execute agent.
    :param instantiated_plan: Plan containing steps to execute.
    :return: List of executed steps.
    """

    # Initialize the step counter and capture the initial screenshot.
    self.session_step = 0
    try:
        time.sleep(1)
        # Initialize the API receiver
        self.app_agent.Puppeteer.receiver_manager.create_api_receiver(
            self.app_agent._app_root_name, self.app_agent._process_name
        )
        # Initialize the control receiver
        current_receiver = self.app_agent.Puppeteer.receiver_manager.receiver_list[
            -1
        ]

        if current_receiver is not None:
            self.application_window = self._app_env.find_matching_window(
                self._task_file_name
            )
            current_receiver.com_object = (
                current_receiver.get_object_from_process_name()
            )

        self.init_and_final_capture_screenshot()
    except Exception as error:
        raise RuntimeError(f"Execution initialization failed. {error}")

    # Initialize the success flag for each step.
    for index, step_plan in enumerate(instantiated_plan):
        instantiated_plan[index]["Success"] = None
        instantiated_plan[index]["MatchedControlText"] = None

    for index, step_plan in enumerate(instantiated_plan):
        try:
            self.session_step += 1

            # Check if the maximum steps have been exceeded.
            if self.session_step > _configs["MAX_STEPS"]:
                raise RuntimeError("Maximum steps exceeded.")

            self._parse_step_plan(step_plan)

            try:
                self.process()
                instantiated_plan[index]["Success"] = True
                instantiated_plan[index]["ControlLabel"] = self._control_label
                instantiated_plan[index][
                    "MatchedControlText"
                ] = self._matched_control
            except Exception as ControllerNotFoundError:
                instantiated_plan[index]["Success"] = False
                raise ControllerNotFoundError

        except Exception as error:
            err_info = RuntimeError(
                f"Step {self.session_step} execution failed. {error}"
            )
            raise err_info
    # capture the final screenshot
    self.session_step += 1
    time.sleep(1)
    self.init_and_final_capture_screenshot()
    # save the final state of the app

    win_com_receiver = None
    for receiver in reversed(
        self.app_agent.Puppeteer.receiver_manager.receiver_list
    ):
        if isinstance(receiver, WinCOMReceiverBasic):
            if receiver.client is not None:
                win_com_receiver = receiver
                break

    if win_com_receiver is not None:
        win_com_receiver.save()
        time.sleep(1)
        win_com_receiver.client.Quit()

    print("Execution complete.")

    return instantiated_plan

general_error_handler()

处理一般错误。

源代码位于 execution/workflow/execute_flow.py
374
375
376
377
378
379
def general_error_handler(self) -> None:
    """
    Handle general errors.
    """

    pass

init_and_final_capture_screenshot()

捕获屏幕截图。

源代码位于 execution/workflow/execute_flow.py
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
def init_and_final_capture_screenshot(self) -> None:
    """
    Capture the screenshot.
    """

    # Define the paths for the screenshots saved.
    screenshot_save_path = self.log_path + f"action_step{self.session_step}.png"

    self._memory_data.add_values_from_dict(
        {
            "CleanScreenshot": screenshot_save_path,
        }
    )

    self.photographer.capture_app_window_screenshot(
        self.application_window, save_path=screenshot_save_path
    )
    # Capture the control screenshot.
    control_selected = self._app_env.app_window
    self.capture_control_screenshot(control_selected)

log_save()

记录为 PrefillAgent 构建的提示消息。

源代码位于 execution/workflow/execute_flow.py
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
def log_save(self) -> None:
    """
    Log the constructed prompt message for the PrefillAgent.
    """

    step_memory = {
        "Step": self.session_step,
        "Subtask": self.subtask,
        "ControlLabel": self._control_label,
        "ControlText": self.control_text,
        "Action": self.action,
        "ActionType": self.app_agent.Puppeteer.get_command_types(self._operation),
        "Results": self._results,
        "Application": self.app_agent._app_root_name,
        "TimeCost": self.time_cost,
    }
    self._memory_data.add_values_from_dict(step_memory)
    self.log(self._memory_data.to_dict())

print_step_info()

打印步骤信息。

源代码位于 execution/workflow/execute_flow.py
231
232
233
234
235
236
237
238
239
240
241
242
def print_step_info(self) -> None:
    """
    Print the step information.
    """

    utils.print_with_color(
        "Step {step}: {subtask}".format(
            step=self.session_step,
            subtask=self.subtask,
        ),
        "magenta",
    )

process()

处理当前步骤。

源代码位于 execution/workflow/execute_flow.py
219
220
221
222
223
224
225
226
227
228
229
def process(self) -> None:
    """
    Process the current step.
    """

    step_start_time = time.time()
    self.print_step_info()
    self.capture_screenshot()
    self.execute_action()
    self.time_cost = round(time.time() - step_start_time, 3)
    self.log_save()

ExecuteAgent

基类:AppAgent

用于任务执行的代理。

初始化 ExecuteAgent。

参数
  • name (str) –

    智能体的名称。

  • process_name (str) –

    进程的名称。

  • app_root_name (str) –

    应用程序根的名称。

源代码位于 execution/agent/execute_agent.py
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
def __init__(
    self,
    name: str,
    process_name: str,
    app_root_name: str,
):
    """
    Initialize the ExecuteAgent.
    :param name: The name of the agent.
    :param process_name: The name of the process.
    :param app_root_name: The name of the app root.
    """

    self._step = 0
    self._complete = False
    self._name = name
    self._status = None
    self._process_name = process_name
    self._app_root_name = app_root_name
    self.Puppeteer = self.create_puppeteer_interface()

ExecuteEvalAgent

基类:EvaluationAgent

用于任务执行评估的代理。

初始化 ExecuteEvalAgent。

参数
  • name (str) –

    智能体的名称。

  • app_root_name (str) –

    应用程序根的名称。

  • is_visual (bool) –

    指示智能体是否可视的标志。

  • main_prompt (str) –

    主提示。

  • example_prompt (str) –

    示例提示。

  • api_prompt (str) –

    API 提示。

源代码位于 execution/agent/execute_eval_agent.py
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
def __init__(
    self,
    name: str,
    app_root_name: str,
    is_visual: bool,
    main_prompt: str,
    example_prompt: str,
    api_prompt: str,
):
    """
    Initialize the ExecuteEvalAgent.
    :param name: The name of the agent.
    :param app_root_name: The name of the app root.
    :param is_visual: The flag indicating whether the agent is visual or not.
    :param main_prompt: The main prompt.
    :param example_prompt: The example prompt.
    :param api_prompt: The API prompt.
    """

    super().__init__(
        name=name,
        app_root_name=app_root_name,
        is_visual=is_visual,
        main_prompt=main_prompt,
        example_prompt=example_prompt,
        api_prompt=api_prompt,
    )

get_prompter(is_visual, prompt_template, example_prompt_template, api_prompt_template, root_name=None)

获取代理的提示器。

参数
  • is_visual (bool) –

    指示智能体是否可视的标志。

  • prompt_template (str) –

    提示模板。

  • example_prompt_template (str) –

    示例提示模板。

  • api_prompt_template (str) –

    API 提示模板。

  • root_name (Optional[str], 默认值: None ) –

    根的名称。

返回
  • ExecuteEvalAgentPrompter

    提示器。

源代码位于 execution/agent/execute_eval_agent.py
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
def get_prompter(
    self,
    is_visual: bool,
    prompt_template: str,
    example_prompt_template: str,
    api_prompt_template: str,
    root_name: Optional[str] = None,
) -> ExecuteEvalAgentPrompter:
    """
    Get the prompter for the agent.
    :param is_visual: The flag indicating whether the agent is visual or not.
    :param prompt_template: The prompt template.
    :param example_prompt_template: The example prompt template.
    :param api_prompt_template: The API prompt template.
    :param root_name: The name of the root.
    :return: The prompter.
    """

    return ExecuteEvalAgentPrompter(
        is_visual=is_visual,
        prompt_template=prompt_template,
        example_prompt_template=example_prompt_template,
        api_prompt_template=api_prompt_template,
        root_name=root_name,
    )
