AppAgent 👾
AppAgent
负责在选定的应用程序上迭代执行操作,直到在特定应用程序中成功完成任务。AppAgent
由 HostAgent
创建,以在 Round
中完成子任务。AppAgent
负责在应用程序中执行必要的操作以满足用户的请求。AppAgent
具有以下功能:
- ReAct 与应用程序 -
AppAgent
以观察->思考->行动的工作流程与应用程序递归交互,利用视觉语言模型 (VLM) 的多模态能力来理解应用程序 UI 并满足用户的请求。
- 理解增强 -
AppAgent
通过从异构来源(包括外部知识库和演示库)进行的检索增强生成 (RAG) 得到增强,使代理成为应用程序“专家”。
- 多功能技能集 -
AppAgent
配备了多样化的技能集,以支持全面的自动化,例如鼠标、键盘、本机 API 和“Copilot”。

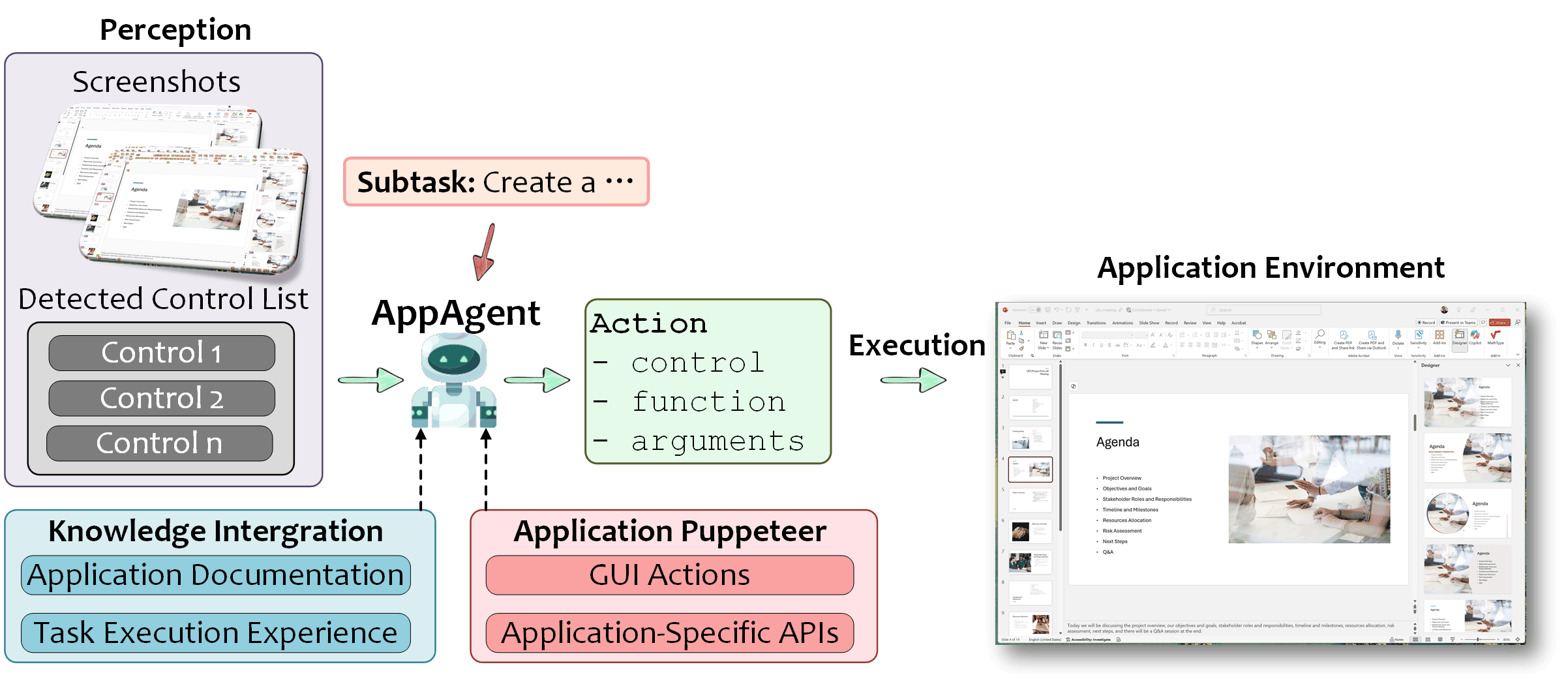

我们在下图中展示了 AppAgent
的框架
AppAgent 输入
为了与应用程序交互,AppAgent
接收以下输入:
输入 |
描述 |
类型 |
用户请求 |
用户的自然语言请求。 |
字符串 |
子任务 |
由 HostAgent 分配给 AppAgent 执行的子任务描述。 |
字符串 |
当前应用程序 |
要交互的应用程序名称。 |
字符串 |
控制信息 |
应用程序中可用控件的索引、名称和控制类型。 |
字典列表 |
应用程序截图 |
应用程序截图,包括干净的截图、带有标记控件的注释截图,以及上一步中选定控件周围带有矩形的截图(可选)。 |
字符串列表 |
上一个子任务 |
上一个子任务及其完成状态。 |
字符串列表 |
上一个计划 |
后续步骤的上一个计划。 |
字符串列表 |
HostAgent 消息 |
来自 HostAgent 的消息,用于完成子任务。 |
字符串 |
检索到的信息 |
从外部知识库或演示库中检索到的信息。 |
字符串 |
黑板 |
用于在代理之间存储和共享信息的共享内存空间。 |
字典 |
下面是带有标记控件的注释应用程序截图示例。这遵循Set-of-Mark 范式。
通过处理这些输入,AppAgent
确定在应用程序中满足用户请求所需的行动。
提示
是否连接干净截图和注释截图可以在 config_dev.yaml
文件中的 CONCAT_SCREENSHOT
字段中配置。
提示
是否包含上一步中选定控件周围带有矩形的截图可以在 config_dev.yaml
文件中的 INCLUDE_LAST_SCREENSHOT
字段中配置。
AppAgent 输出
根据提供的输入,AppAgent
生成以下输出:
输出 |
描述 |
类型 |
观察 |
当前应用程序截图的观察结果。 |
字符串 |
思考 |
AppAgent 的逻辑推理过程。 |
字符串 |
ControlLabel |
要交互的选定控件的索引。 |
字符串 |
ControlText |
要交互的选定控件的名称。 |
字符串 |
功能 |
要在选定控件上执行的函数。 |
字符串 |
参数 |
函数执行所需的参数。 |
字符串列表 |
状态 |
代理的状态,映射到 AgentState 。 |
字符串 |
计划 |
当前操作后的后续步骤计划。 |
字符串列表 |
注释 |
提供给用户的附加评论或信息。 |
字符串 |
保存截图 |
将应用程序截图保存到 blackboard 以备将来参考的标志。 |
布尔值 |
以下是 AppAgent
输出的示例
{
"Observation": "Application screenshot",
"Thought": "Logical reasoning process",
"ControlLabel": "Control index",
"ControlText": "Control name",
"Function": "Function name",
"Args": ["arg1", "arg2"],
"Status": "AgentState",
"Plan": ["Step 1", "Step 2"],
"Comment": "Additional comments",
"SaveScreenshot": true
}
信息
AppAgent
输出由 LLM 格式化为 JSON 对象,可以使用 Python 中的 json.loads
方法进行解析。
AppAgent 状态
AppAgent
状态由状态机管理,状态机根据当前状态确定要执行的下一个操作,如 ufo/agents/states/app_agent_states.py
模块中所定义。状态包括:
状态 |
描述 |
继续 |
主执行循环;评估哪些子任务已准备好启动或恢复。 |
分配 |
选择可用的应用程序进程并生成相应的 AppAgent 。 |
待定 |
等待用户输入以解决歧义或收集额外的任务参数。 |
完成 |
所有子任务完成;清理代理实例并最终确定会话状态。 |
失败 |
在不可恢复的故障发生时进入恢复或中止模式。 |

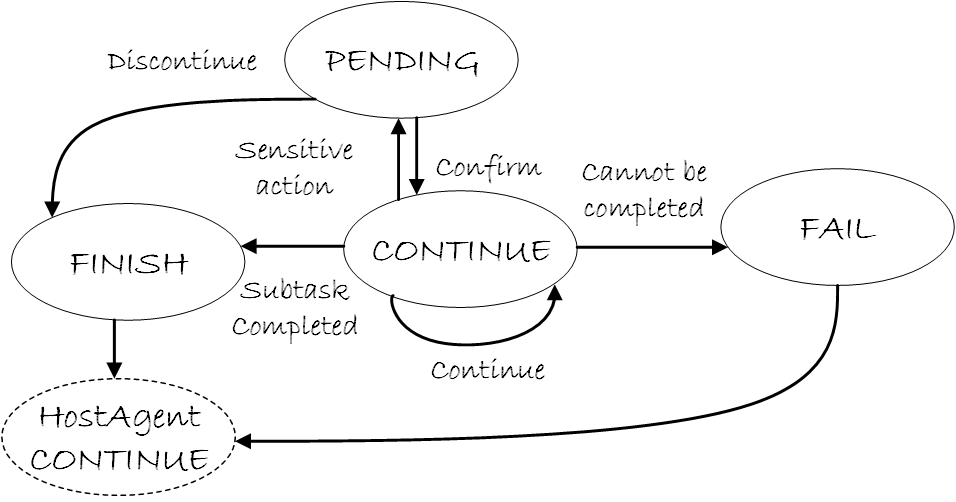

AppAgent
的状态机图如下所示
AppAgent
通过这些状态来执行应用程序中必要的操作并完成 HostAgent
分配的子任务。
知识增强
AppAgent
通过从异构来源(包括外部知识库和演示库)进行的检索增强生成 (RAG) 得到增强。AppAgent
利用这些知识来增强其对应用程序的理解,并从演示中学习以提高其性能。
从帮助文档中学习
用户可以在 config.yaml
文件中向 AppAgent
提供帮助文档,以增强其对应用程序的理解并提高其性能。
提示
您也可以参考此处了解如何向 AppAgent
提供帮助文档。
在 AppAgent
中,它调用 build_offline_docs_retriever
来构建帮助文档检索器,并使用 retrived_documents_prompt_helper
为 AppAgent
构建提示。
从 Bing 搜索学习
由于帮助文档可能无法涵盖所有信息或信息可能已过时,AppAgent
还可以利用 Bing 搜索来检索最新信息。您可以在 config.yaml
文件中激活 Bing 搜索并配置搜索引擎。
提示
您也可以参考此处了解 AppAgent
中 Bing 搜索的实现。
在 AppAgent
中,它调用 build_online_search_retriever
来构建 Bing 搜索检索器,并使用 retrived_documents_prompt_helper
为 AppAgent
构建提示。
从自我演示中学习
您可以将 AppAgent
中成功的操作轨迹保存下来,以从自我演示中学习并提高其性能。在 session
完成后,AppAgent
将询问用户是否保存操作轨迹以供将来参考。您可以在 config.yaml
文件中配置自我演示的使用。
提示
您也可以参考此处了解 AppAgent
中自我演示的实现。
在 AppAgent
中,它调用 build_experience_retriever
来构建自我演示检索器,并使用 rag_experience_retrieve
为 AppAgent
检索演示。
从人类演示中学习
除了自我演示之外,您还可以通过使用 Windows 操作系统中内置的步骤记录器工具向 AppAgent
提供人类演示,以提高其性能。AppAgent
将从人类演示中学习,以提高其性能并实现更好的个性化。人类演示的使用可以在 config.yaml
文件中配置。
提示
您也可以参考此处了解 AppAgent
中人类演示的实现。
在 AppAgent
中,它调用 build_human_demonstration_retriever
来构建人类演示检索器,并使用 rag_experience_retrieve
为 AppAgent
检索演示。
自动化技能集
AppAgent
配备了多功能技能集,通过调用 create_puppeteer_interface
方法来支持应用程序中的全面自动化。这些技能包括:
技能 |
描述 |
UI 自动化 |
使用 UI Automation 和 Win32 API 模拟用户与应用程序 UI 控件的交互。 |
本机 API |
访问应用程序的本机 API 以执行特定功能和操作。 |
应用内代理 |
利用应用内代理与应用程序的内部功能和特性进行交互。 |
通过利用这些技能,AppAgent
可以高效地与应用程序交互并满足用户的请求。您可以在自动化器文档和 ufo/automator
模块中的代码中找到更多详细信息。
参考
基类:BasicAgent
管理与应用程序交互的 AppAgent 类。
初始化 AppAgent。:name: 代理的名称。
参数 |
-
process_name (str ) –
-
app_root_name (str ) –
-
is_visual (bool ) –
-
main_prompt (str ) –
-
example_prompt (str ) –
-
api_prompt (str ) –
-
skip_prompter (bool , 默认: False ) –
-
mode (str , 默认: 'normal' ) –
|
源代码位于 agents/agent/app_agent.py
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89 | def __init__(
self,
name: str,
process_name: str,
app_root_name: str,
is_visual: bool,
main_prompt: str,
example_prompt: str,
api_prompt: str,
skip_prompter: bool = False,
mode: str = "normal",
) -> None:
"""
Initialize the AppAgent.
:name: The name of the agent.
:param process_name: The process name of the app.
:param app_root_name: The root name of the app.
:param is_visual: The flag indicating whether the agent is visual or not.
:param main_prompt: The main prompt file path.
:param example_prompt: The example prompt file path.
:param api_prompt: The API prompt file path.
:param skip_prompter: The flag indicating whether to skip the prompter initialization.
:param mode: The mode of the agent.
"""
super().__init__(name=name)
if not skip_prompter:
self.prompter = self.get_prompter(
is_visual, main_prompt, example_prompt, api_prompt, app_root_name
)
self._process_name = process_name
self._app_root_name = app_root_name
self.offline_doc_retriever = None
self.online_doc_retriever = None
self.experience_retriever = None
self.human_demonstration_retriever = None
self.Puppeteer = self.create_puppeteer_interface()
self._mode = mode
control_detection_backend = configs.get("CONTROL_BACKEND", ["uia"])
if "omniparser" in control_detection_backend:
omniparser_endpoint = configs.get("OMNIPARSER", {}).get("ENDPOINT", "")
omniparser_service = OmniParser(endpoint=omniparser_endpoint)
self.grounding_service: Optional[BasicGrounding] = OmniparserGrounding(
service=omniparser_service
)
else:
self.grounding_service: Optional[BasicGrounding] = None
self.set_state(self.default_state)
|
build_experience_retriever(db_path)
构建经验检索器。
源代码位于 agents/agent/app_agent.py
448
449
450
451
452
453
454
455
456 | def build_experience_retriever(self, db_path: str) -> None:
"""
Build the experience retriever.
:param db_path: The path to the experience database.
:return: The experience retriever.
"""
self.experience_retriever = self.retriever_factory.create_retriever(
"experience", db_path
)
|
build_human_demonstration_retriever(db_path)
构建人类演示检索器。
源代码位于 agents/agent/app_agent.py
458
459
460
461
462
463
464
465
466 | def build_human_demonstration_retriever(self, db_path: str) -> None:
"""
Build the human demonstration retriever.
:param db_path: The path to the human demonstration database.
:return: The human demonstration retriever.
"""
self.human_demonstration_retriever = self.retriever_factory.create_retriever(
"demonstration", db_path
)
|
build_offline_docs_retriever()
构建离线文档检索器。
源代码位于 agents/agent/app_agent.py
430
431
432
433
434
435
436 | def build_offline_docs_retriever(self) -> None:
"""
Build the offline docs retriever.
"""
self.offline_doc_retriever = self.retriever_factory.create_retriever(
"offline", self._app_root_name
)
|
build_online_search_retriever(request, top_k)
构建在线搜索检索器。
参数 |
-
request (str ) –
-
top_k (int ) –
|
源代码位于 agents/agent/app_agent.py
438
439
440
441
442
443
444
445
446 | def build_online_search_retriever(self, request: str, top_k: int) -> None:
"""
Build the online search retriever.
:param request: The request for online Bing search.
:param top_k: The number of documents to retrieve.
"""
self.online_doc_retriever = self.retriever_factory.create_retriever(
"online", request, top_k
)
|
context_provision(request='')
为应用代理提供上下文。
源代码位于 agents/agent/app_agent.py
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504 | def context_provision(self, request: str = "") -> None:
"""
Provision the context for the app agent.
:param request: The request sent to the Bing search retriever.
"""
# Load the offline document indexer for the app agent if available.
if configs["RAG_OFFLINE_DOCS"]:
utils.print_with_color(
"Loading offline help document indexer for {app}...".format(
app=self._process_name
),
"magenta",
)
self.build_offline_docs_retriever()
# Load the online search indexer for the app agent if available.
if configs["RAG_ONLINE_SEARCH"] and request:
utils.print_with_color("Creating a Bing search indexer...", "magenta")
self.build_online_search_retriever(
request, configs["RAG_ONLINE_SEARCH_TOPK"]
)
# Load the experience indexer for the app agent if available.
if configs["RAG_EXPERIENCE"]:
utils.print_with_color("Creating an experience indexer...", "magenta")
experience_path = configs["EXPERIENCE_SAVED_PATH"]
db_path = os.path.join(experience_path, "experience_db")
self.build_experience_retriever(db_path)
# Load the demonstration indexer for the app agent if available.
if configs["RAG_DEMONSTRATION"]:
utils.print_with_color("Creating an demonstration indexer...", "magenta")
demonstration_path = configs["DEMONSTRATION_SAVED_PATH"]
db_path = os.path.join(demonstration_path, "demonstration_db")
self.build_human_demonstration_retriever(db_path)
|
create_puppeteer_interface()
创建 Puppeteer 接口以自动化应用程序。
源代码位于 agents/agent/app_agent.py
| def create_puppeteer_interface(self) -> puppeteer.AppPuppeteer:
"""
Create the Puppeteer interface to automate the app.
:return: The Puppeteer interface.
"""
return puppeteer.AppPuppeteer(self._process_name, self._app_root_name)
|
demonstration_prompt_helper(request)
使用演示检索器获取 AppAgent 的示例和提示。
返回 |
-
Tuple[List[Dict[str, Any]]] –
|
源代码位于 agents/agent/app_agent.py
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254 | def demonstration_prompt_helper(self, request) -> Tuple[List[Dict[str, Any]]]:
"""
Get the examples and tips for the AppAgent using the demonstration retriever.
:param request: The request for the AppAgent.
:return: The examples and tips for the AppAgent.
"""
# Get the examples and tips for the AppAgent using the experience and demonstration retrievers.
if configs["RAG_EXPERIENCE"]:
experience_results = self.rag_experience_retrieve(
request, configs["RAG_EXPERIENCE_RETRIEVED_TOPK"]
)
else:
experience_results = []
if configs["RAG_DEMONSTRATION"]:
demonstration_results = self.rag_demonstration_retrieve(
request, configs["RAG_DEMONSTRATION_RETRIEVED_TOPK"]
)
else:
demonstration_results = []
return experience_results, demonstration_results
|
external_knowledge_prompt_helper(request, offline_top_k, online_top_k)
检索外部知识并构建提示。
参数 |
-
request (str ) –
-
offline_top_k (int ) –
-
online_top_k (int ) –
|
源代码位于 agents/agent/app_agent.py
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305 | def external_knowledge_prompt_helper(
self, request: str, offline_top_k: int, online_top_k: int
) -> Tuple[str, str]:
"""
Retrieve the external knowledge and construct the prompt.
:param request: The request.
:param offline_top_k: The number of offline documents to retrieve.
:param online_top_k: The number of online documents to retrieve.
:return: The prompt message for the external_knowledge.
"""
# Retrieve offline documents and construct the prompt
if self.offline_doc_retriever:
offline_docs = self.offline_doc_retriever.retrieve(
request,
offline_top_k,
filter=None,
)
format_string = "[Similar Requests]: {question}\nStep: {answer}\n"
offline_docs_prompt = self.prompter.retrived_documents_prompt_helper(
"[Help Documents]",
"",
[
format_string.format(
question=doc.metadata.get("title", ""),
answer=doc.metadata.get("text", ""),
)
for doc in offline_docs
],
)
else:
offline_docs_prompt = ""
# Retrieve online documents and construct the prompt
if self.online_doc_retriever:
online_search_docs = self.online_doc_retriever.retrieve(
request, online_top_k, filter=None
)
online_docs_prompt = self.prompter.retrived_documents_prompt_helper(
"Online Search Results",
"Search Result",
[doc.page_content for doc in online_search_docs],
)
else:
online_docs_prompt = ""
return offline_docs_prompt, online_docs_prompt
|
get_prompter(is_visual, main_prompt, example_prompt, api_prompt, app_root_name)
获取代理的提示。
参数 |
-
is_visual (bool ) –
-
main_prompt (str ) –
-
example_prompt (str ) –
-
api_prompt (str ) –
-
app_root_name (str ) –
|
源代码位于 agents/agent/app_agent.py
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110 | def get_prompter(
self,
is_visual: bool,
main_prompt: str,
example_prompt: str,
api_prompt: str,
app_root_name: str,
) -> AppAgentPrompter:
"""
Get the prompt for the agent.
:param is_visual: The flag indicating whether the agent is visual or not.
:param main_prompt: The main prompt file path.
:param example_prompt: The example prompt file path.
:param api_prompt: The API prompt file path.
:param app_root_name: The root name of the app.
:return: The prompter instance.
"""
return AppAgentPrompter(
is_visual, main_prompt, example_prompt, api_prompt, app_root_name
)
|
message_constructor(dynamic_examples, dynamic_knowledge, image_list, control_info, prev_subtask, plan, request, subtask, current_application, host_message, blackboard_prompt, last_success_actions, include_last_screenshot)
为 AppAgent 构建提示消息。
参数 |
-
dynamic_examples (str ) –
-
dynamic_knowledge (str ) –
-
image_list (List ) –
-
control_info (str ) –
-
plan (List[str] ) –
-
request (str ) –
-
subtask (str ) –
-
current_application (str ) –
-
host_message (List[str] ) –
-
blackboard_prompt (List[Dict[str, str]] ) –
-
last_success_actions (List[Dict[str, Any]] ) –
-
include_last_screenshot (bool ) –
|
返回 |
-
List[Dict[str, Union[str, List[Dict[str, str]]]]] –
|
源代码位于 agents/agent/app_agent.py
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171 | def message_constructor(
self,
dynamic_examples: str,
dynamic_knowledge: str,
image_list: List,
control_info: str,
prev_subtask: List[Dict[str, str]],
plan: List[str],
request: str,
subtask: str,
current_application: str,
host_message: List[str],
blackboard_prompt: List[Dict[str, str]],
last_success_actions: List[Dict[str, Any]],
include_last_screenshot: bool,
) -> List[Dict[str, Union[str, List[Dict[str, str]]]]]:
"""
Construct the prompt message for the AppAgent.
:param dynamic_examples: The dynamic examples retrieved from the self-demonstration and human demonstration.
:param dynamic_knowledge: The dynamic knowledge retrieved from the external knowledge base.
:param image_list: The list of screenshot images.
:param control_info: The control information.
:param plan: The plan list.
:param request: The overall user request.
:param subtask: The subtask for the current AppAgent to process.
:param current_application: The current application name.
:param host_message: The message from the HostAgent.
:param blackboard_prompt: The prompt message from the blackboard.
:param last_success_actions: The list of successful actions in the last step.
:param include_last_screenshot: The flag indicating whether to include the last screenshot.
:return: The prompt message.
"""
appagent_prompt_system_message = self.prompter.system_prompt_construction(
dynamic_examples
)
appagent_prompt_user_message = self.prompter.user_content_construction(
image_list=image_list,
control_item=control_info,
prev_subtask=prev_subtask,
prev_plan=plan,
user_request=request,
subtask=subtask,
current_application=current_application,
host_message=host_message,
retrieved_docs=dynamic_knowledge,
last_success_actions=last_success_actions,
include_last_screenshot=include_last_screenshot,
)
if blackboard_prompt:
appagent_prompt_user_message = (
blackboard_prompt + appagent_prompt_user_message
)
appagent_prompt_message = self.prompter.prompt_construction(
appagent_prompt_system_message, appagent_prompt_user_message
)
return appagent_prompt_message
|
print_response(response_dict, print_action=True)
打印响应。
参数 |
-
response_dict (Dict[str, Any] ) –
-
print_action (bool , 默认: True ) –
|
源代码位于 agents/agent/app_agent.py
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230 | def print_response(
self, response_dict: Dict[str, Any], print_action: bool = True
) -> None:
"""
Print the response.
:param response_dict: The response dictionary to print.
:param print_action: The flag indicating whether to print the action.
"""
control_text = response_dict.get("ControlText")
control_label = response_dict.get("ControlLabel")
if not control_text and not control_label:
control_text = "[No control selected.]"
control_label = "[No control label selected.]"
observation = response_dict.get("Observation")
thought = response_dict.get("Thought")
plan = response_dict.get("Plan")
status = response_dict.get("Status")
comment = response_dict.get("Comment")
function_call = response_dict.get("Function")
args = utils.revise_line_breaks(response_dict.get("Args"))
# Generate the function call string
action = self.Puppeteer.get_command_string(function_call, args)
utils.print_with_color(
"Observations👀: {observation}".format(observation=observation), "cyan"
)
utils.print_with_color("Thoughts💡: {thought}".format(thought=thought), "green")
if print_action:
utils.print_with_color(
"Selected item🕹️: {control_text}, Label: {label}".format(
control_text=control_text, label=control_label
),
"yellow",
)
utils.print_with_color(
"Action applied⚒️: {action}".format(action=action), "blue"
)
utils.print_with_color("Status📊: {status}".format(status=status), "blue")
utils.print_with_color(
"Next Plan📚: {plan}".format(plan="\n".join(plan)), "cyan"
)
utils.print_with_color("Comment💬: {comment}".format(comment=comment), "green")
screenshot_saving = response_dict.get("SaveScreenshot", {})
if screenshot_saving.get("save", False):
utils.print_with_color(
"Notice: The current screenshot📸 is saved to the blackboard.",
"yellow",
)
utils.print_with_color(
"Saving reason: {reason}".format(
reason=screenshot_saving.get("reason")
),
"yellow",
)
|
process(context)
处理代理。
源代码位于 agents/agent/app_agent.py
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392 | def process(self, context: Context) -> None:
"""
Process the agent.
:param context: The context.
"""
if configs.get("ACTION_SEQUENCE", False):
self.processor = AppAgentActionSequenceProcessor(
agent=self, context=context, ground_service=self.grounding_service
)
else:
self.processor = AppAgentProcessor(
agent=self, context=context, ground_service=self.grounding_service
)
self.processor.process()
self.status = self.processor.status
|
process_comfirmation()
处理用户确认。
源代码位于 agents/agent/app_agent.py
401
402
403
404
405
406
407
408
409
410
411
412
413
414 | def process_comfirmation(self) -> bool:
"""
Process the user confirmation.
:return: The decision.
"""
action = self.processor.actions
control_text = self.processor.control_text
decision = interactor.sensitive_step_asker(action, control_text)
if not decision:
utils.print_with_color("The user has canceled the action.", "red")
return decision
|
rag_demonstration_retrieve(request, demonstration_top_k)
为用户请求检索演示示例。
参数 |
-
request (str ) –
-
demonstration_top_k (int ) –
|
源代码位于 agents/agent/app_agent.py
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376 | def rag_demonstration_retrieve(self, request: str, demonstration_top_k: int) -> str:
"""
Retrieving demonstration examples for the user request.
:param request: The user request.
:param demonstration_top_k: The number of documents to retrieve.
:return: The retrieved examples and tips string.
"""
retrieved_docs = []
# Retrieve demonstration examples.
demonstration_docs = self.human_demonstration_retriever.retrieve(
request, demonstration_top_k
)
if demonstration_docs:
for doc in demonstration_docs:
example_request = doc.metadata.get("request", "")
response = doc.metadata.get("example", {})
subtask = doc.metadata.get("Sub-task", "")
tips = doc.metadata.get("Tips", "")
retrieved_docs.append(
{
"Request": example_request,
"Response": response,
"Sub-task": subtask,
"Tips": tips,
}
)
return retrieved_docs
else:
return []
|
rag_experience_retrieve(request, experience_top_k)
为用户请求检索经验示例。
参数 |
-
request (str ) –
-
experience_top_k (int ) –
|
源代码位于 agents/agent/app_agent.py
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342 | def rag_experience_retrieve(
self, request: str, experience_top_k: int
) -> List[Dict[str, Any]]:
"""
Retrieving experience examples for the user request.
:param request: The user request.
:param experience_top_k: The number of documents to retrieve.
:return: The retrieved examples and tips dictionary.
"""
retrieved_docs = []
# Retrieve experience examples. Only retrieve the examples that are related to the current application.
experience_docs = self.experience_retriever.retrieve(
request,
experience_top_k,
filter=lambda x: self._app_root_name.lower()
in [app.lower() for app in x["app_list"]],
)
if experience_docs:
for doc in experience_docs:
example_request = doc.metadata.get("request", "")
response = doc.metadata.get("example", {})
tips = doc.metadata.get("Tips", "")
subtask = doc.metadata.get("Sub-task", "")
retrieved_docs.append(
{
"Request": example_request,
"Response": response,
"Sub-task": subtask,
"Tips": tips,
}
)
return retrieved_docs
|
