混合检测

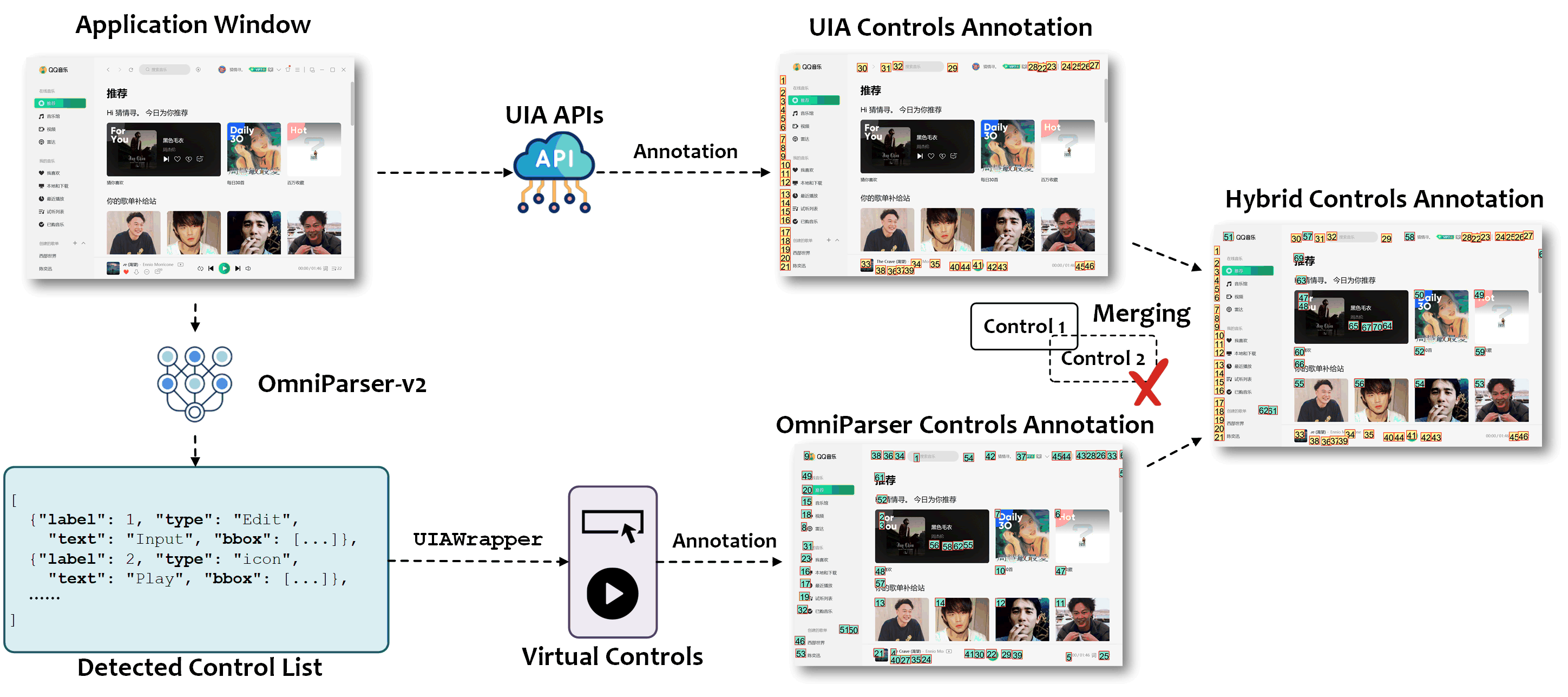

我们还支持使用 UIA 和 OmniParser-v2 进行混合控制检测。此方法可用于使用 UI Automation (UIA) 框架检测应用程序中的标准控件,以及检测应用程序中可能无法通过标准 UIA 方法识别的自定义控件。通过基于 IOU 移除重复控件,将视觉检测到的控件与 UIA 控件合并。我们在下图中说明了混合控件检测

Hybrid Control Detection

配置

在使用混合控件检测之前,您需要部署和配置 OmniParser 模型。您可以参考OmniParser 部署了解更多详情。

要激活图标控件过滤,您需要在 config_dev.yaml 文件中将 CONTROL_BACKEND 设置为 ["uia", "omniparser"]

CONTROL_BACKEND: ["uia", "omniparser"]

参考

OmniParser 中用于视觉控件检测的类如下

基类:BasicGrounding

OmniparserGrounding 类是 BasicGrounding 的子类,用于表示 Omniparser 接地模型。

parse_results(results, application_window=None)

将接地结果字符串解析为控制元素信息字典列表。

参数
  • results (List[Dict[str, Any]]) –

    来自接地模型的接地结果字典列表。

  • application_window (UIAWrapper, 默认值:None ) –

    获取绝对坐标的应用程序窗口。

返回
  • List[Dict[str, Any]]

    控制元素信息字典列表,字典应包含以下键: { "control_type": 元素的控制类型, "name": 元素的名称, "x0": 边界框的绝对左坐标(整数), "y0": 边界框的绝对上坐标(整数), "x1": 边界框的绝对右坐标(整数), "y1": 边界框的绝对下坐标(整数), }

源代码位于 automator/ui_control/grounding/omniparser.py
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
def parse_results(
    self, results: List[Dict[str, Any]], application_window: UIAWrapper = None
) -> List[Dict[str, Any]]:
    """
    Parse the grounding results string into a list of control elements infomation dictionaries.
    :param results: The list of grounding results dictionaries from the grounding model.
    :param application_window: The application window to get the absolute coordinates.
    :return: The list of control elements information dictionaries, the dictionary should contain the following keys:
    {
        "control_type": The control type of the element,
        "name": The name of the element,
        "x0": The absolute left coordinate of the bounding box in integer,
        "y0": The absolute top coordinate of the bounding box in integer,
        "x1": The absolute right coordinate of the bounding box in integer,
        "y1": The absolute bottom coordinate of the bounding box in integer,
    }
    """

    control_elements_info = []

    if application_window is None:
        application_rect = RECT(0, 0, 0, 0)
    else:
        try:
            application_rect = application_window.rectangle()
        except Exception:
            application_rect = RECT(0, 0, 0, 0)

    for control_info in results:

        if not self._filter_interactivity and control_info.get(
            "interactivity", True
        ):
            continue

        application_left, application_top = (
            application_rect.left,
            application_rect.top,
        )

        control_box = control_info.get("bbox", [0, 0, 0, 0])

        control_left = int(
            application_left + control_box[0] * application_rect.width()
        )
        control_top = int(
            application_top + control_box[1] * application_rect.height()
        )
        control_right = int(
            application_left + control_box[2] * application_rect.width()
        )
        control_bottom = int(
            application_top + control_box[3] * application_rect.height()
        )

        control_elements_info.append(
            {
                "control_type": control_info.get("type", "Button"),
                "name": control_info.get("content", ""),
                "x0": control_left,
                "y0": control_top,
                "x1": control_right,
                "y1": control_bottom,
            }
        )

    return control_elements_info

predict(image_path, box_threshold=0.05, iou_threshold=0.1, use_paddleocr=True, imgsz=640, api_name='/process')

预测给定图像的接地。

参数
  • image_path (str) –

    图像路径。

  • box_threshold (float, 默认值:0.05 ) –

    边界框阈值。

  • iou_threshold (float, 默认值:0.1 ) –

    交并集阈值。

  • use_paddleocr (bool, 默认值:True ) –

    是否使用 paddleocr。

  • imgsz (int, 默认值:640 ) –

    图像大小。

  • api_name (str, 默认值:'/process' ) –

    API 名称。

返回
  • List[Dict[str, Any]]

    预测的接地结果字符串。

源代码位于 automator/ui_control/grounding/omniparser.py
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
def predict(
    self,
    image_path: str,
    box_threshold: float = 0.05,
    iou_threshold: float = 0.1,
    use_paddleocr: bool = True,
    imgsz: int = 640,
    api_name: str = "/process",
) -> List[Dict[str, Any]]:
    """
    Predict the grounding for the given image.
    :param image_path: The path to the image.
    :param box_threshold: The threshold for the bounding box.
    :param iou_threshold: The threshold for the intersection over union.
    :param use_paddleocr: Whether to use paddleocr.
    :param imgsz: The image size.
    :param api_name: The name of the API.
    :return: The predicted grounding results string.
    """

    list_of_grounding_results = []

    if not os.path.exists(image_path):
        print_with_color(
            f"Warning: The image path {image_path} does not exist.", "yellow"
        )
        return list_of_grounding_results

    try:
        results = self.service.chat_completion(
            image_path, box_threshold, iou_threshold, use_paddleocr, imgsz, api_name
        )
        grounding_results = results[1].splitlines()

    except Exception as e:
        print_with_color(
            f"Warning: Failed to get grounding results for Omniparser. Error: {e}",
            "yellow",
        )

        return list_of_grounding_results

    for item in grounding_results:
        try:
            item = json.loads(item)
            list_of_grounding_results.append(item)
        except json.JSONDecodeError:
            try:
                # the item string is a string converted from python's dict
                item = ast.literal_eval(item[item.index("{"):item.rindex("}") + 1])
                list_of_grounding_results.append(item)
            except Exception:
                pass

    return list_of_grounding_results
